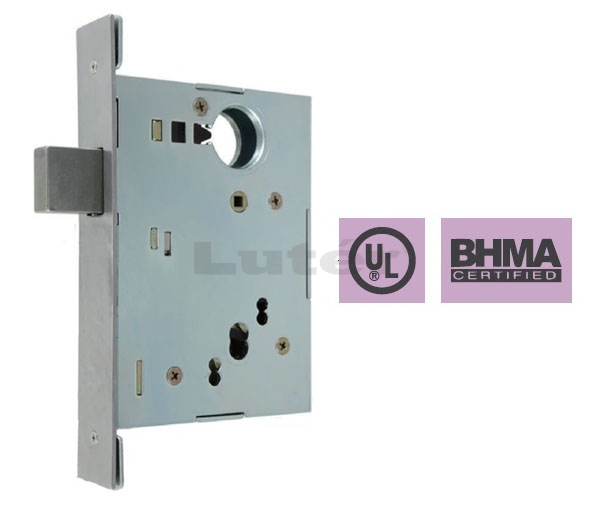

ANSI / BHMA A156.13 & UL Listed M8A0 Mortise Deadbolt

Home > Products > Auxiliary Lock > ANSI / BHMA A156.13 & UL Listed M8A0 Mortise Deadbolt

description
Model Number
download

No.59, Alley 6 - 6, Lane 298, Beitun Rd., Taichung City 406,Taiwan ( R.O.C. )
TEL : 886 - 4 - 22479015 FAX : 886 - 4 - 22414361
Mail : louischou@luter.com.tw

Face plate:	SUS304, Satin Stainless steel, 203mm(L) x 32mm(W)
Backset:	70mm(2-3/4")
Deadbolt:	1" throw Stainless steel deadbolt with a built in hardened steel pin
Thumb turn material:	Stainless steel 304
Door Thickness:	44mm (1-3/4") standard. Optional door thickness available.
Handing:	Non-handed
Cylinder:	Mortise, Interchangeable Core
Keyway:	Schlage C, Schlage E, Yale, BEST, L6 (65M/006)
Finish:	US32D or other request.
