Retractable Door Seal, Door Bottom Seal

Features:
Protection against cold, draught and vermin reduces light leakage.
For soundproofing doors, smoke control doors, fire resistant doors.
Adjustable sealing height. Single - side release only.

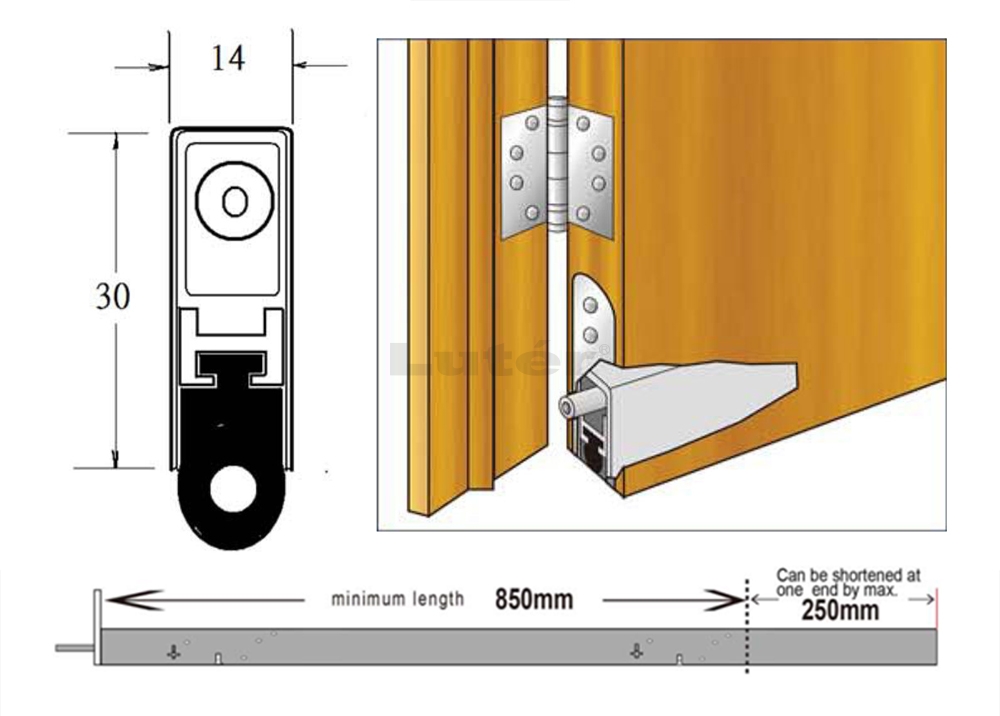

Technical Data:
Length : 1100mm
Bolt length : 7mm - 25mm
Max. sealing height : 5mm - 14mm
Can be shortened at on end by max. 250mm.
Required groove width: 14mm
Finish: Satin Stainless Steel.
Seal profile: Black, self-etinguishing.

Supplied with:
1. Retractable door seal.
2. Fixing brackets with screws any release plate.
